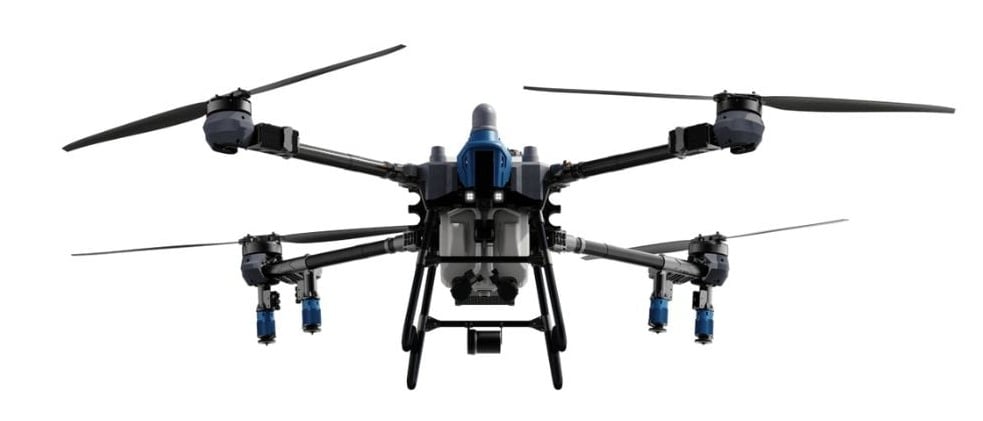

The EAVision J150 is the flagship of the EAVision. It is a heavy-duty agricultural drone designed for large-scale use with wide range applications. It is the largest CASA approved drone able to hold 80 kgs or 75 litres and cover 2 hectares in 4 minutes.
The J150 has a 100lt hopper and is capable of emptying this in 30 seconds and covering a distance of 400mts.
Looking for ways to cover more ground, save time, and apply your inputs with pinpoint accuracy? The EAVision J150 agricultural drone is designed to be a powerful and efficient workhorse that brings a new level of productivity to your fields.
The EAvision J150 brings new capability for large agricultural operators that require additional capacity to manage larger spraying and spreading requirements and/or increased application rates. With a maximum take-off weight of 149kg this large drone will meet the needs of operators who have the capability to manage and, at the same time take advantage of the ability of this large spray drone. With a 70L spray capacity or 100L spreader capacity, the J150 provides a cost-effective option to broadacre requirements.
The J150 is the second in the “J” series of drones from EAvision and follows the successful J100. Many successful features have been incorporated and improved in the J150. In addition, new features have been added to the J150 that complement its larger capacity. EAvision’s demonstrated commitment to build quality in all EAvision Drones and the J150 is no exception. All major components are developed in-house and subject to a strict quality control process throughout every stage in the build process.
To achieve increased lifting ability, the J150 comes with both larger motors and 63-inch propellers. Power output is rated at 10 grams per watt or 73 kg per motor. Overall performance retains the EAvision standard of 2 x Power to weight ratio.
New ECS/Motor interface and performance balancing software. Providing continuous, secure power efficiently and controlled to minimise heat build-up
Advanced, automobile-grade, obstacle detection system. The J150 combines five advanced sensing modules to create a 360° terrain and obstacle environment, ensuring safe and efficient operation. Duel Forward LiDar, Dual Phased Array radar, and a 360 ° Millimetre Wave Radar provide sensing capability day and night. The Phased radar array also provides detection capability during dusty and/or foggy conditions.

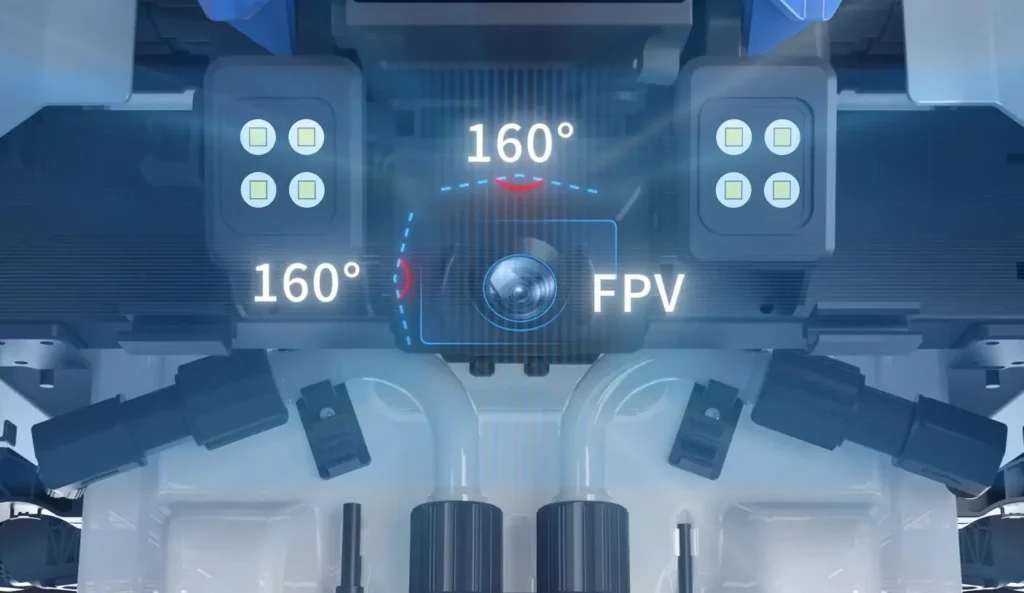

The J150 Fish-Eye fixed FPV camera offers a 160° field of view in both horizontal and vertical planes. The digital gymble provides a clear view of the operating environment with fewer moving parts, resulting in an increased overall reliability of the system.
The high-spec camera paired with the high transmission rate of the controller results in a better view with low latency.
The J150 retains the rear four-nozzle layout that has been a proven success with the J100. The version 6 nozzles increase the max flow to 40lt/min when the four nozzles are in use. The current nozzle disc configuration has a droplet size range of 10 – 420 micron. Suitable for most spray applications.
New to the J150 is the option to mix droplet sizes for each nozzle pair. This feature has been especially developed to meet the needs of orchid-type applications to further improve canopy penetration with both misting and larger droplet sizes in the one application.
The J150 Spreader has a capacity of 100lts or 70kg uplift. The new combination of Auger and Spinner allows for smooth and constant product delivery with minimal blockages. The Auger design is compatible with both wet and dry fertilisers.
With a max flow rate of 280kg/min and an 8m swath, the spreading efficiency is greatly improved when combined with the maximum flight speed.
The J150 Smart battery maintains the same advanced modular design that has been successful with the J100. Already proving itself with superior performance, especially in hot environments and continual use.
Combined with a 13,000 charger, the battery with its increased capacity of 45Ah provides long flight times and fast charging. Continuous operation with only 2 batteries is possible, even in our hot summer conditions.
The battery has many advanced features to improve both battery performance and self protection.
| Feature Category | Feature | Specification |
|---|---|---|
| Aircraft (EA-J150) | Product Name/Model | EA-J150 / 3WWDZ-U70B |
| Rotor Type | X4 Rotor | |
| Empty weight (Battery included) | 75kg | |
| Unfold size (Propellers, arms unfolded) | 3375×3510×950mm | |
| Folded size (arms folded) | 1325×795×950mm | |
| Folded size (Propellers folded) | 1967×2085×950mm | |
| Maximum wheelbase | 2580mm | |
| Main rotor diameter | φ1600mm | |
| Max Take off Weight for Spraying | 145kg (70lt tank) | |
| Max Take off Weight for Spreading | 149.9kg (100lt tank) | |
| Max Take off Weight for Lifting | 149.9kg | |
| Blade size | TBA | |
| Performance & Environment | Hovering Time (no load hover) | 19min |
| Hovering Accuracy Range (RTK enabled) | horizontal ±10cm, vertical ±10cm | |
| Hovering Accuracy Range (D-RTK disabled) | horizontal ±50cm, vertical ±30cm | |
| Altitude | TBA | |
| Operating ambient temperature | -10°C∼45°C | |
| Humidity of working environment | 30%∼90%RH | |
| Maximum tolerable wind speed | 12m/s (level 6 wind) | |
| Maximum flight radius | 2000m | |
| Protection | IP Rating | Module IP67 + Drone IPX6K |
| Corrosion resistance grade | NSS24H | |
| Max speed for safe obstacle avoidance | ≤13.8m/s | |
| Operating System (General) | Obstacle Avoidance System | Front Laser Radar, Upper Rotating Radar, Rear Rotating Radar |
| Obstacle identification | Can identify 1cm obstacles (wires, dead branches, telephone poles). | |
| Obstacle avoidance at night | Supports, performance is same as daytime. | |
| Terrain Follow at night | Supports, consistent with daytime. | |
| Operating System (Terrain Follow) | Terrain Follow slope | 90° |
| Terrain Follow height range | 1m ∼ 30m (accurate within 15m) | |
| High-speed terrain follow (wire area) | 7 m/s | |
| Front Laser Radar | Scope | 128 |
| Horizontal/Vertical viewing field | 70° / 180° | |
| Limit detection distance | 150m | |
| Outdoor effective distance | 80M (70klux, 10% reflectivity) | |
| Ranging accuracy | ±3cm | |
| Maximum power / Laser grade | 35W / Class1 human eye safety | |
| Horizontal/Vertical angular resolution | 0.54° / 0.17° | |
| Upper Rotating Radar | Type | 360° Active Phased Array 4D Millimetre Wave Radar |
| Horizontal/Vertical viewing field | 360° / 140° | |
| Limit detection distance | 80m | |
| Outdoor effective distance / Range resolution | 60M (10% reflectivity) / 0.1m | |
| Maximum power | 15W | |
| Rear Rotating Radar | Type | 360° Active Phased Array 4D Millimetre Wave Radar |
| Horizontal/Vertical viewing field | 50° / 270° | |
| Limit detection distance | 80m | |
| Outdoor effective distance / Range resolution | 60M (10% reflectivity) / 0.1m | |
| Rated power | 12W | |
| FPV System (EAV-FPV60) | Feild of View | 120° rotating stable head, 160° wide viewing angle |
| Maximum resolution / Video format | 2K 30fps / H.265 | |
| Video delay (720P@30FPS) | not more than 180ms | |
| Video delay (1080P@30FPS) | not more than 250ms | |
| Functional characteristics | Electronic Virtual Gimbal, shock absorption and water ripple resistance | |
| Infrared Lamp / Head Lamp (Quantity/Power) | 2 / 40W (Infrared), 2 / 15W (Head) | |
| Power System (Motor/ESC) | Operating voltage / Rated power | 18V∼63V / 5kW |
| Motor KV value / Stator size | 60KV / 167.1×65.6mm | |
| Maximum pulling force | 73kg (single motor) | |
| Propeller type / Rotor number | 6324 / 4 | |
| Rotor material | Carbon fiber reinforced polymer | |
| Infrared Lamp Wavelength/FOV | 850nm / 100° | |
| Spray System | Rated volume / Full load volume | 70L / 73L |
| Spray width | 4∼15m | |
| Length of spray bar / Pesticide box weight | 1800mm / 6kg (including pump and flowmeter) | |
| Material (Tank) | PE | |
| Nozzle model / Number of nozzles | EAV-CCMS60 / 2 or 4 | |
| Nozzle Size / Weight | φ95mm*172mm / 1110g | |
| Atomised particle size | 10∼500μm | |
| Liquid pump form / Quantity | Impeller Pump / 2 | |
| Pump Rated power / maximum flow | ≤200W / 40L/min, ±5% | |
| Solenoid Valve Operating voltage/current | DC58V (Op), DC16V (Maint) / 0.7A (Act), 0.25A (Maint) | |
| Valve service Life / Rated power | ≥ 400,000 times / 4W | |
| Flowmeter Precision / Measuring velocity range | ≤3% / 1∼40L/min | |
| Flowmeter Operating voltage | 6∼28V | |
| Spreader System (EAV-SPD100) | Box capacity / Spreading width | 100L / 3∼8m |
| System weight (including box) | ≤5kg | |
| Anti-blocking rotation (Example 1) | 50% diammonium sulfate + 50% small urea particles, and 1% herbicide solution based on the total mass | |
| Anti-blocking rotation (Example 2) | 50% diammonium sulfate + 33% potassium sulfate + 17% large urea particles | |
| Anti-blocking rotation (Example 3) | 50% bio-fertiliser + 50% small urea particles, and 1% herbicide solution based on the total mass | |
| Operating voltage / current | 47∼58.8V / 0∼25A | |
| Maximum spreading velocity / discharging speed | 240kg/min / 240kg/min (compound fertiliser) | |
| Max power (spinner / auger) | 395W / 565W | |
| Rotation speed range (turntable / auger) | 200RPM∼1000RPM / 0∼450RPM | |
| Maximum weighing range / resolution | 100kg / ≤50g | |
| Accuracy (Spreading boundary / mu dosage) | ±0.1m / ≤10% (wet), ≤5% (dry) | |
| No-discharging detection time | ≤500ms | |
| RC Remote Controller (EAV-RC60) | Size (antenna folded) / Weight | 268*147*53mm / ≥1.5kg |
| Operating system / Processor | Android 12 / 64-bit Qualcomm 8-core CPU, 6nm process | |
| Wireless communication | Bluetooth 5.2, WIFI 6E, GNSS, domestic version 4G | |
| Communication frequency band | 2.4GHz | |
| Maximum communication distance | 3000m | |
| High definition image transmission | Support 1080p@60fps and H.265/H.264 coding. | |
| Storage / Display screen size/resolution | 8G+128G / 7.02 inches / 1200×1920 px | |
| Maximum brightness of screen | 1500cd/² | |
| Battery capacity/life/charging time/power | 12000mAh / > 8h / <3h / 65W | |
| Protection grades / Functional interface | IP54 / USB-A, TYPE-C, HDMI 2.1, TF card, SIM card (domestic version) | |
| Relay / RTK Base Station (EAV-BAS60) | Size (antenna folded) / Weight | 160*154*120mm / 1117.4g |
| Communication frequency band/mode/distance | 2.4GHz / Bluetooth / 10m | |
| Positioning update frequency / accuracy | 10Hz / 0.01m+1ppm | |
| First positioning time (cold start) | <26s | |
| RTK convergence time | ≤15s | |
| Re-Establish Position Fix time | ≤1min | |
| Battery life/Charging power/Time to Full | >8h / 65W / 2∼3h | |
| Operating voltage / Battery capacity | 7.4V / 12000mAh | |
| Protection grades | IP54 | |
| Survey Tool (EAV-SUT60) | Size / Weight | 210*65*65mm / 317g |
| Communication mode / Bluetooth distance | Bluetooth communication / 10m | |
| Battery life/Charging Time to Full | >8h / 2∼3h | |
| Operating voltage / Protection grades | 7.4V / IP54 | |
| Communication band (Bluetooth) | 2.4GHz | |
| Positioning update frequency / accuracy | 10Hz / 0.01m+1ppm | |
| First positioning time (cold start) | <26s | |
| RTK convergence time | ≤15s | |
| Re-Establish Position Fix time | ≤1min | |
| Battery System (EAV-CTB45Ah) | Name / Weight | CTB integrated shell-core supercharging battery / 17.8±0.5kg |
| Rated capacity / Dimensions | 45000mAh / 167×337×369.5mm | |
| Charging current / Fully charged voltage | 225A (5C) / 59.92V | |
| Discharging current | 450A (10C) | |
| Charging Time to Full | 9min (30%∼95%) | |
| Waterproof grade / Intelligent protection | IP65 / Short circuit, overcharge, overcurrent, fire protection | |
| Ambient temp (Charge / Discharge) | 15°C – 60°C (Charge) / -5°C – 60°C (Discharge) | |
| Cooling Charger (EAV-C60) | Size / Weight | 330×339×450 / 19kg |
| Maximum charging power (Double/Single) | 12400W / 3600W | |
| Input voltage / Output voltage/current | AC90∼264V (full range) / 40∼61V / 225A | |
| Charging speed | ∼9 minutes (for generators above 13,000 W) | |
| Intelligent protection | PFC correction, over-voltage, over-temperature, short-circuit, fan stall protection, etc. | |
| Fan specs (Air volume / Max RPM / Rated power) | 318CFM*2 / 7200RPM / 120W*2 | |
| Fan voltage / current | DC48V / 2.5A | |
| Heat dissipation effect | Battery core temp of 65°C protection is never triggered during charging (Ambient ≤40°C) |
